Patio Misting System

Patio Misting System

A patio mist cooling system is a type of outdoor cooling system that uses a high-pressure pump to pump water through small nozzles, creating a fine mist that can cool the air around a patio or outdoor living area. The mist created by the system can lower the surrounding air temperature by as much as 20-30 degrees, making it a popular choice for outdoor spaces during hot weather.

They can be an effective way to cool an outdoor living space while also providing a pleasant ambiance.

Product Features:

• Easy installation
• Can be affixed with cable ties
• The length between nozzles can be determined according to choice
• Cools air up to 10 degrees Celsius

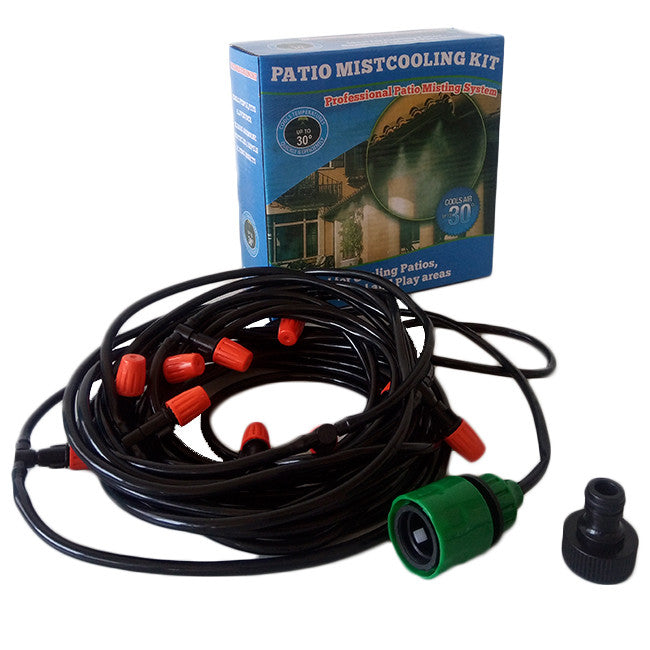

What's in the Box

• 10m of tubing.
• 10 connectors.
• 10 fine mist nozzles.
• 1 x standard tap connector.
• 1 x standard tap adaptor.

Instructions Measure and cut the misting pipe at the desired length intervals (at the points where you want the misting nozzles situated along the misting pipe.) Unscrew the locking caps on the inline nozzle connectors (about halfway), and push the misting pipe all the way into the connectors, then tighten the locking caps to secure the misting pipe in place. Do the same for the end nozzle connector and the tap connector. Screw the brass nozzles into the connectors securely. Fix the misting line to your structure (patio, Lapa, gazebo, umbrella, etc.) using the cable ties provided. Connect to your tap fitting or to the clip-on garden fittings on your garden hose pipe. You are now ready to use your misting kit.

Please Note Open tap slowly (not too full) allowing the misting pipe to fill, and then regulate as required when the nozzles are producing the mist spray. If the system has not been used for a long period (i.e. during the winter months) and the nozzles appear to be blocked, they can be unblocked simply by wetting the end of your finger and wiping it across the face of the nozzle.
